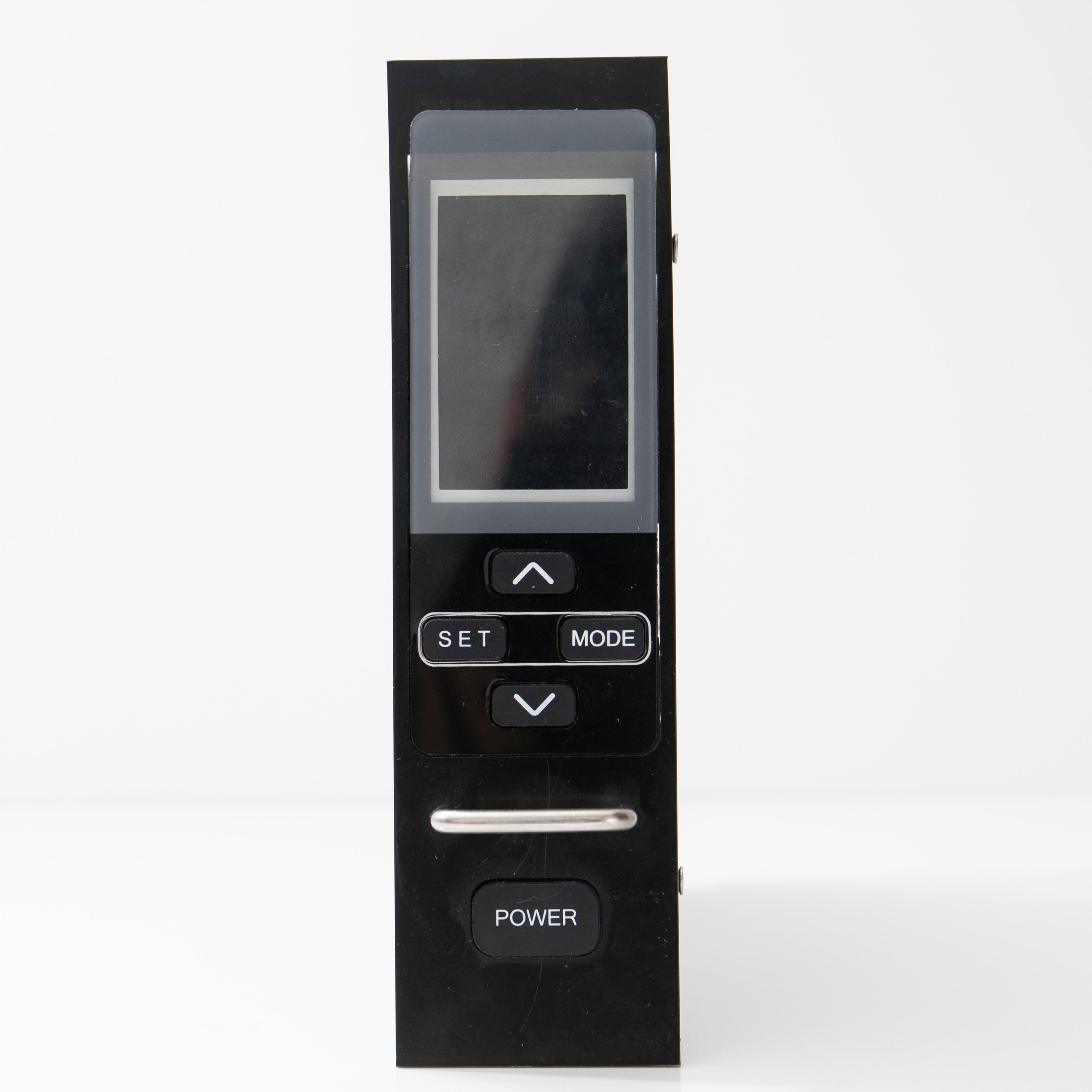

PF600 series temperature control card

PF600 series is a new hot runner temperature control card. It uses chip microcomputer as control center and possesses functions like multiple digital filter circuit, interference automatic recovery, digital PID and auto tune. All these make it a controller with high accuracy, multiple security features and strong anti-interference ability. It’s suitable for hot runner systems, designed for the equipment where the temperature range is 0℃-600℃, easy learning and easy operating

Availability:

Quantity:



Inquire Add to Basket

Large-screen LCD visual display

Error alarm display

Current & Outputs ratio

Soft start

Fuse break warning

Detect heating tube open

Detect thermocouple break

380V voltage protection, prevent card broken by misconnections

Compatible with another brands temperature controller

PID control and manual control (adjustable)

K/J thermocouple model (adjustable)

PF600

PF600 series temperature control card

code	Menu function	default	Upper limit	Lower limit	Explanation
P0	Date lock	0	200	0
P12	Resolution	0	1	0	0=no decimal point 1=decimal point available
P13	Temperature compensation	0	1999	-1999	Temperature revise
P16	Input sensor	0	2	0	0=K 1=E 2=J
P18	Upper limit of alarm	20	25	0	Deviation upper limit
P19	Lower limit of alarm	20	25	0	Deviation lower limit
P20	℃/℉ shift	0	1	0	0=℃ 1=℉
P22	Soft-Start temperature	80	100	0	Soft-Start temperature
P23	Soft-Start percentage	20	100	0	Soft-Start percentage
P24	Soft-Start time	3	8	0	Soft-Start time limit
P73	Overshoot suppression factor	5	20	0	Overshoot suppression factor
P76	Heat parameter P	145.0	199.9	0.1	Proportional band of heat
P77	Heat parameter I	95	1999	1	Integral time of heat
P78	Heat parameter D	18	1999	1	Derivative time of heat
P79	Advance control	50.0	100	1	Advance control
P80	Heating cycle	1	100	1	Heating cycle
P91	Current alarm limit	3	100	1	Current alarm limit
P92	Current value				Current value
P95	Limit resistance of thermocouple	20.0	100	1	resistance of thermocouple
P96	The thermocouple measures the resistance				Greater than P95 alarm
P97	Low load resistance	15.0	100	1	The resistance of the sensor
P99	Load measured resistance				Less than P97 alarm

code	Menu function	default	Upper limit	Lower limit	Explanation
P0	Date lock	0	200	0
P12	Resolution	0	1	0	0=no decimal point 1=decimal point available
P13	Temperature compensation	0	1999	-1999	Temperature revise
P16	Input sensor	0	2	0	0=K 1=E 2=J
P18	Upper limit of alarm	20	25	0	Deviation upper limit
P19	Lower limit of alarm	20	25	0	Deviation lower limit
P20	℃/℉ shift	0	1	0	0=℃ 1=℉
P22	Soft-Start temperature	80	100	0	Soft-Start temperature
P23	Soft-Start percentage	20	100	0	Soft-Start percentage
P24	Soft-Start time	3	8	0	Soft-Start time limit
P73	Overshoot suppression factor	5	20	0	Overshoot suppression factor
P76	Heat parameter P	145.0	199.9	0.1	Proportional band of heat
P77	Heat parameter I	95	1999	1	Integral time of heat
P78	Heat parameter D	18	1999	1	Derivative time of heat
P79	Advance control	50.0	100	1	Advance control
P80	Heating cycle	1	100	1	Heating cycle
P91	Current alarm limit	3	100	1	Current alarm limit
P92	Current value				Current value
P95	Limit resistance of thermocouple	20.0	100	1	resistance of thermocouple
P96	The thermocouple measures the resistance				Greater than P95 alarm
P97	Low load resistance	15.0	100	1	The resistance of the sensor
P99	Load measured resistance				Less than P97 alarm
