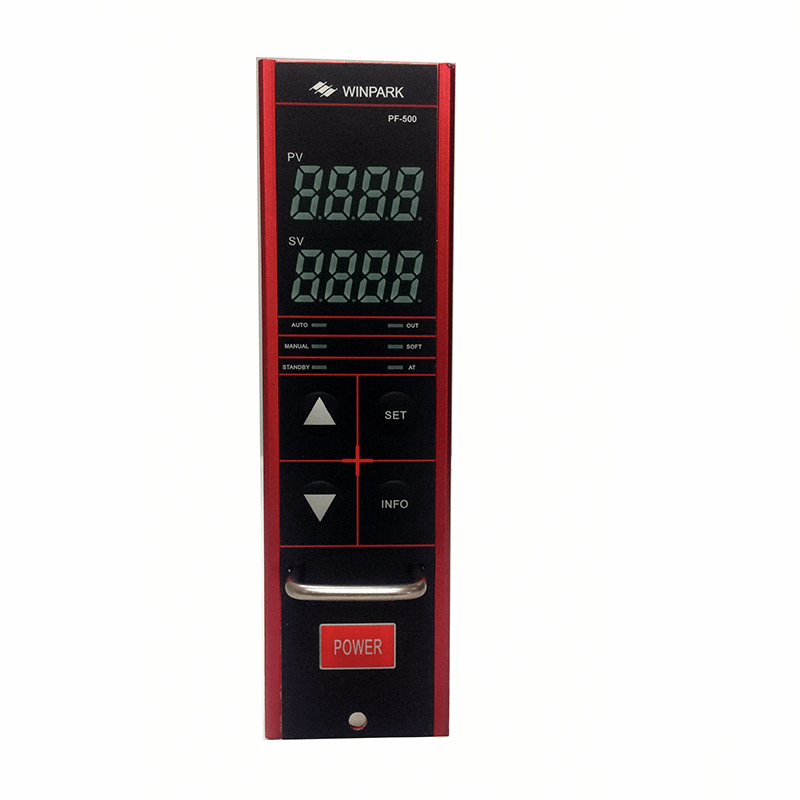

PF500 series intelligent hot runner temperature controller

PF500 series is the hot runner temperature controller. Features: elegant appearance, strong functions. Optional wireless communication will help you control real-time equipment information. Provide cost-effective service through information capture.

 Detect thermocouple abnormal

Detect loading loop

Detect sensor end misconnection

Detect load end misconnection

Software and the output line function

Fuse break warning

Show current & output ratio

Ultralow temperature alarm

Detect heating tube abnormal, protect the heating tube

voltage protection, avoid card broken by misconnections

Compatible with many brands temperature controller

Free switch PID auto-control, manual control and standby mode

Optional wireless communication function, remote monitor


Power Supply: AC220V (Three-phase four wire 380V)

Working Environment: Ambient temperature: 0℃~50℃; relative humidity: 35%~85%(no condensation)

Thermocouple Type: KEJ

Alarm Range: ±25℃(adjustable)

 Max output current for single loop: 15A

Output Power: 0.1KW~3.3KW

Measuring Range: 0℃~450℃

Resolution: 0.11 (adjustable)

Accuracy: ±0.5%FS

Compensation Deviation: ≤±1℃(temperature coefficient)
