HPE series Multi-Channel Temperature Control Module

The HPE series multi-channel temperature control module concentrates multiple intelligent temperature controllers. Easy installation and easy operation. It has features like centralized control, standard rail mounting, save the space and etc. It is widely used in plastic machine, ceramic machine, food machine and other equipment’s.

- Main module support 9 points of output include 1 alarm point, 8 control output points.

- 9 output points support Relay or isolation SSR output 8 output points support analog output

- All output points support functional configuration. Output can be configured as any internal signal output

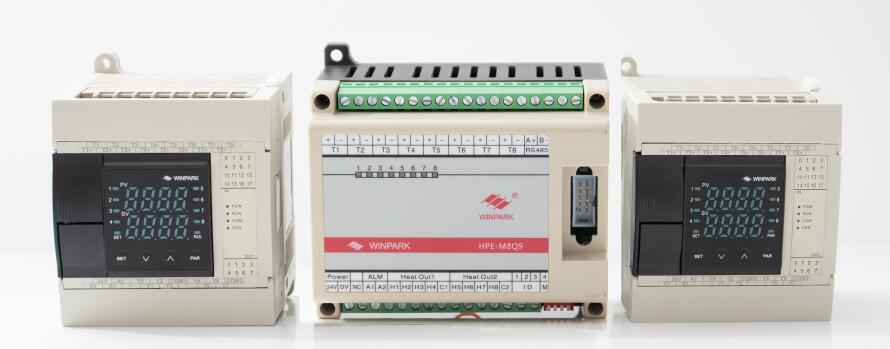

HPE series

—Input signal: Thermocouple type: K,E,J,S,B,N,R,T,W3-25,W5-26

RTD type: PT100,CU50, M4 module support 3 wire of RTD, M8 module support 2 wire of RTD

Analog type: Voltage: 0-10V, 0-5V; Current: 0-20mA, 4-20mA (adjustable)

CT: 0-5A input. CT used for measuring current and detecting the break of output control

—Output signal: Relay output, Logic Level output and Analog output

—Control function: Heating Control, Cooling Control, Manual Control, PID Control

—Working Environment: Ambient Temperature: 0~50℃; Relative Humidity: 35%~85% (no condensation)

—Input impedance: Thermocouple: ≤100Ω

—Measurement Range: 0~600℃,0~1000℃

—Resolution: 0.1

—Accuracy: ±0.5%FS

—Sampling period: 20ms

—Others: cold j temperature compensation; protect break line of input
